产品介绍
旋流器是一种重要的分离分级设备，旋流器利用离心沉降原理进行工作。当待分离的两相混合液以一定压力从旋流器周边切向进入旋流器内后，会产生强烈的三维椭圆型强旋转剪切湍流运动。这种运动使得粗颗粒被甩向旋流器的壁面并沉积下来，从而实现固液分离。
德瑞克10寸聚氨酯除砂器，进出口尺寸均为4寸。
德瑞克10寸聚氨酯旋流器旋流器
除砂锥可去除高达60微米的研磨性、粗大的固体颗粒。
除尘器锥体有10英寸附件，带有4英寸进气口和6英寸出气口。
除沙锥体可以去除细沙和淤泥，淤泥可达20微米。
除泥器锥体有4英寸大小，有2英寸入口和2英寸出口。

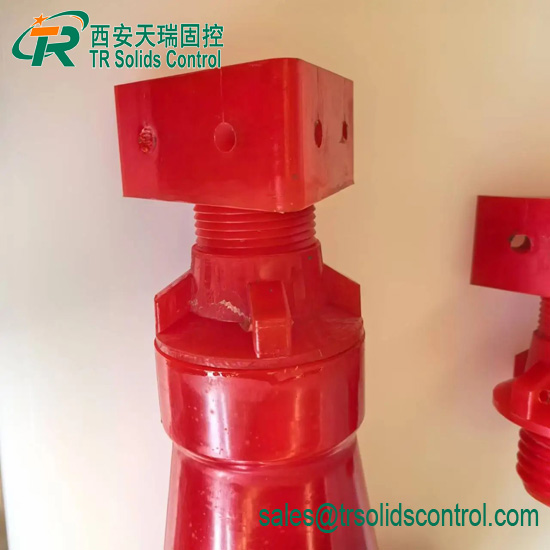

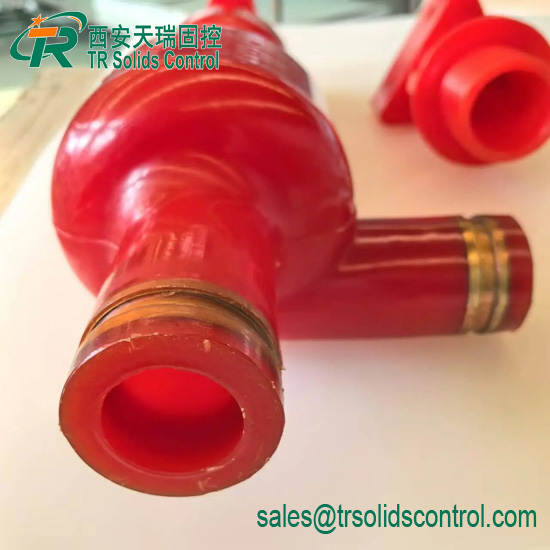

Derrick Desilter Cone Assembly replacement

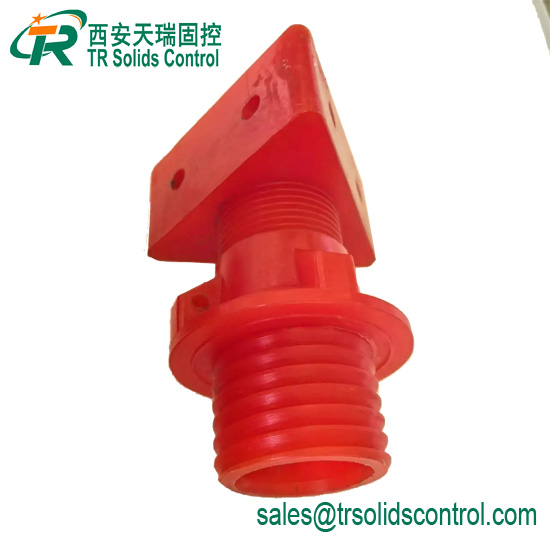

Derrick 4" Desilter Cone Assembly
| No. | Description for 10", 16 or 20" Cone Desilters | Part No. | |
| 1 | Body | 10523-00 | MRT 1102/132 |
| 2 | Circular Cone | 10523-01 | MRT 1102/134 |
| 3 | Mud Cleaner Nut | 10523-03 | MRT 1102/133 |
| 4 | Elbow | 10523-02 | MRT 1102/19 |
Desander Desilter Cones Parameter
| Cones Model | Capacity | Material | Diameter | Seperation size |
| 12 inch | 160-180m³ | Polyurethane/Foundry iron | 300mm | 47-76um |
| 10 inch | 90-120m³ | Polyurethane/Foundry iron | 250mm | 47-76um |
| 8 inch | 60-80m³ | Polyurethane | 200mm | 47-76um |
| 5 inch | 20-30m³ | Polyurethane | 125mm | 15-47um |
| 4 inch | 12-15m³ | Polyurethane | 100mm | 15-47um |
| 3 inch | 8-10m³ | Polyurethane | 75mm | 15-47um |
Desilter Cones for Drilling Mud System
TR desander desilter cones adopted 100% Polyurethane or abrasion resistant alloy material, and we use clamp design, ensuring long life and easy maintenance. it is the ideal products to match desander and desilter. TR Solids Control provide 4″-12″ Polyurethane cyclones for desander desilter and 12″-20″ iron cyclone for desander plant, desander unit.
Desander Desilter Cones for drilling mud cleaner (Desander Desilter), includes: 4-5″ inch Desilter Cones, 8-12″ inch Desander Cones.
We are an exporter of Mud Cleaner. Our factory approval the API, drilling cleaner have the API certification. TR solids control is the designed ,selling, production, service and delivery of Chinese fluids cleaner manufacturer. We will provide the high quality drilling mud shaker and best service. Your best Derrick Desilter Cone start from TR solids control.
